ConSi Studio PCB-Mount stabilizers V3

$17.90
SKU: DP8551
Product details

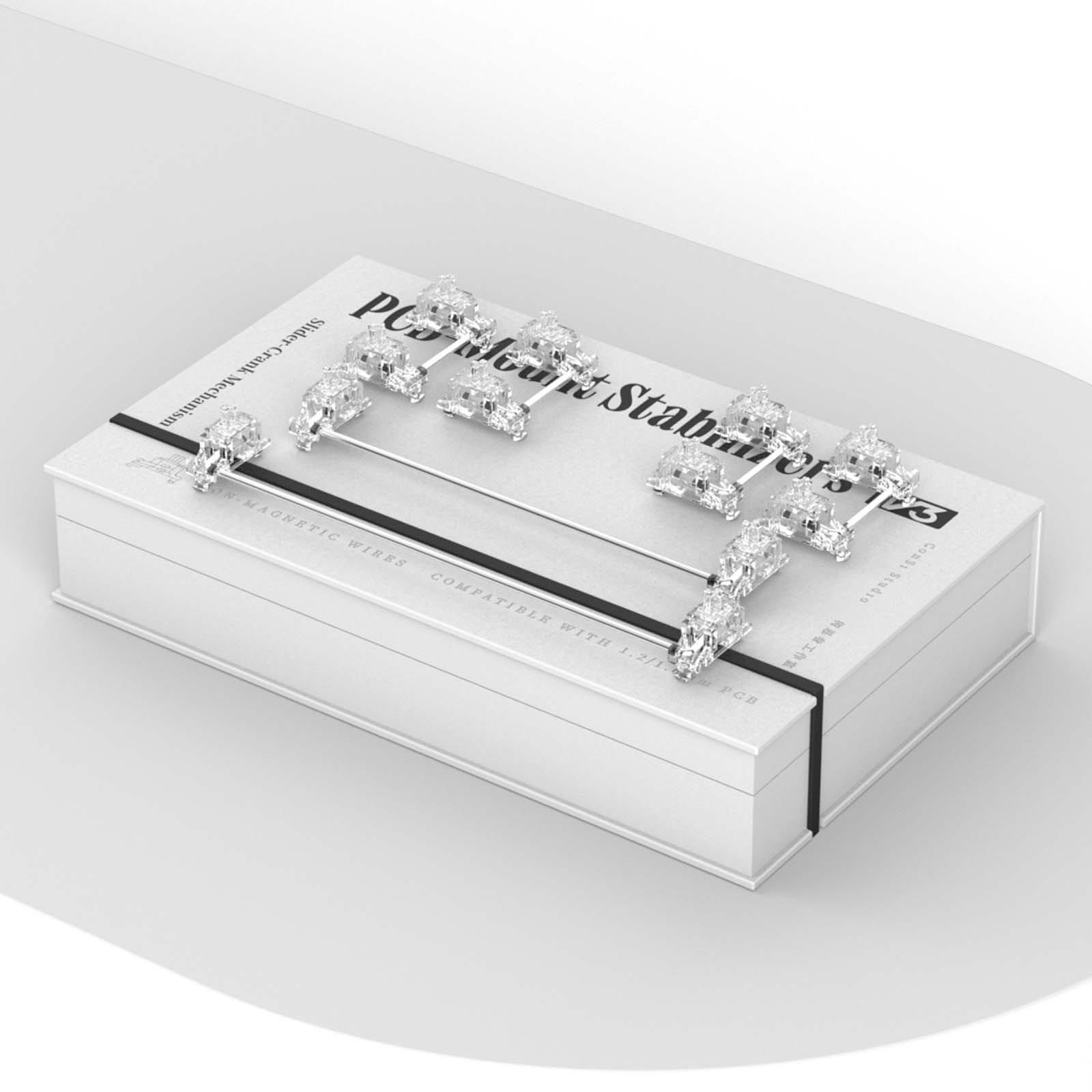

Consi Studio PCB-Mount Stabilizers V3

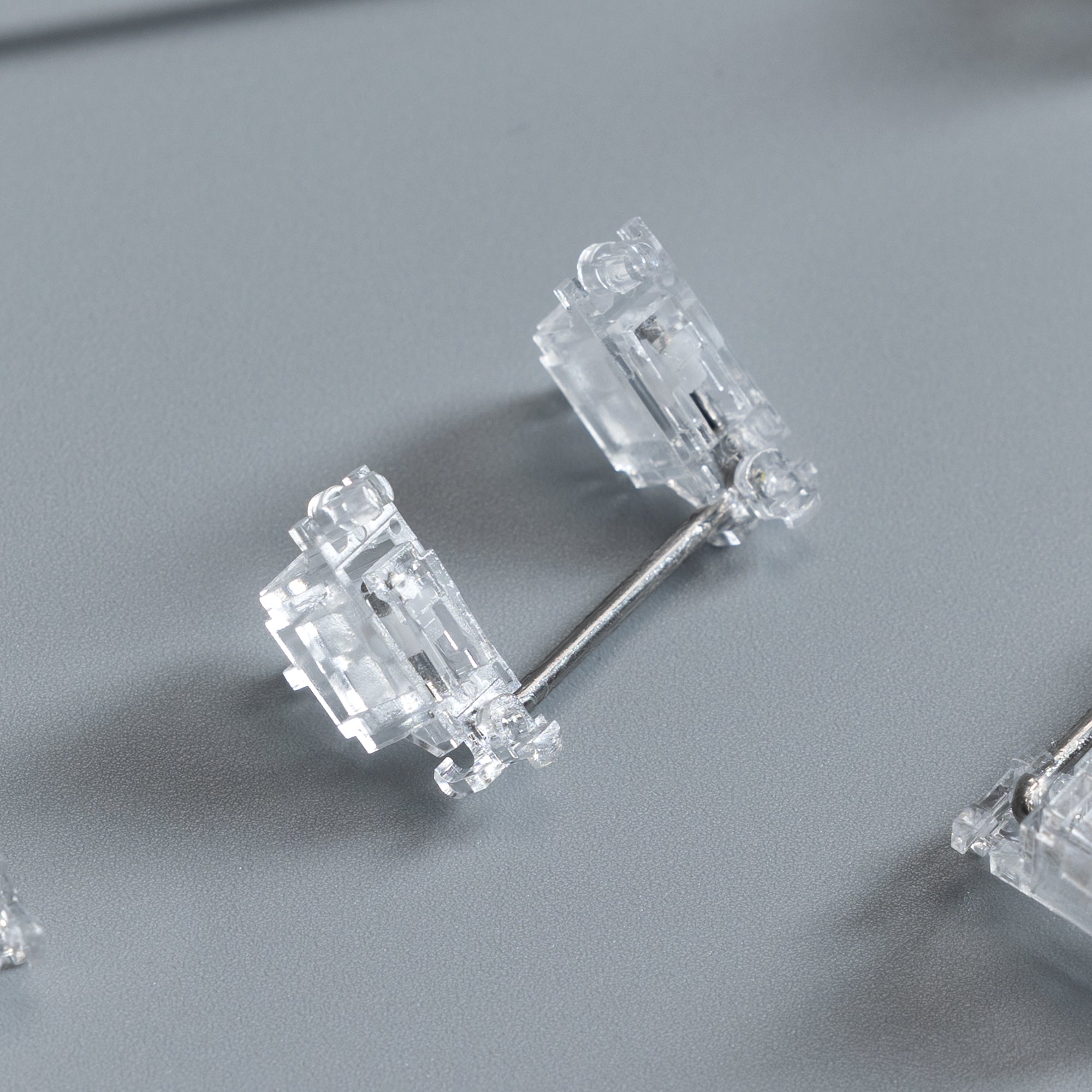

Consi Studio PCB-Mount Stabilizers V3 introduce a redesigned slider-crank mechanism that keeps the stabilizer wire controlled through the keystroke. Instead of the wire moving loosely inside the stem, the central slider rotates around a fixed pivot while the wire slides smoothly through the mechanism—reducing wire play, wobble, and rattle at the source.

V3 combines simple clip-in installation with a top-entry screw-expansion retention clip. Install the stabilizer as a clip-in unit, then tighten the support screw from above to expand the retention clip and secure the housing firmly to the PCB. No metal component contacts the PCB during installation.

Every unit is factory tuned and pre-lubed at its required contact points for a smooth, consistent keystroke out of the box. No additional tuning or lubrication is required for installation.

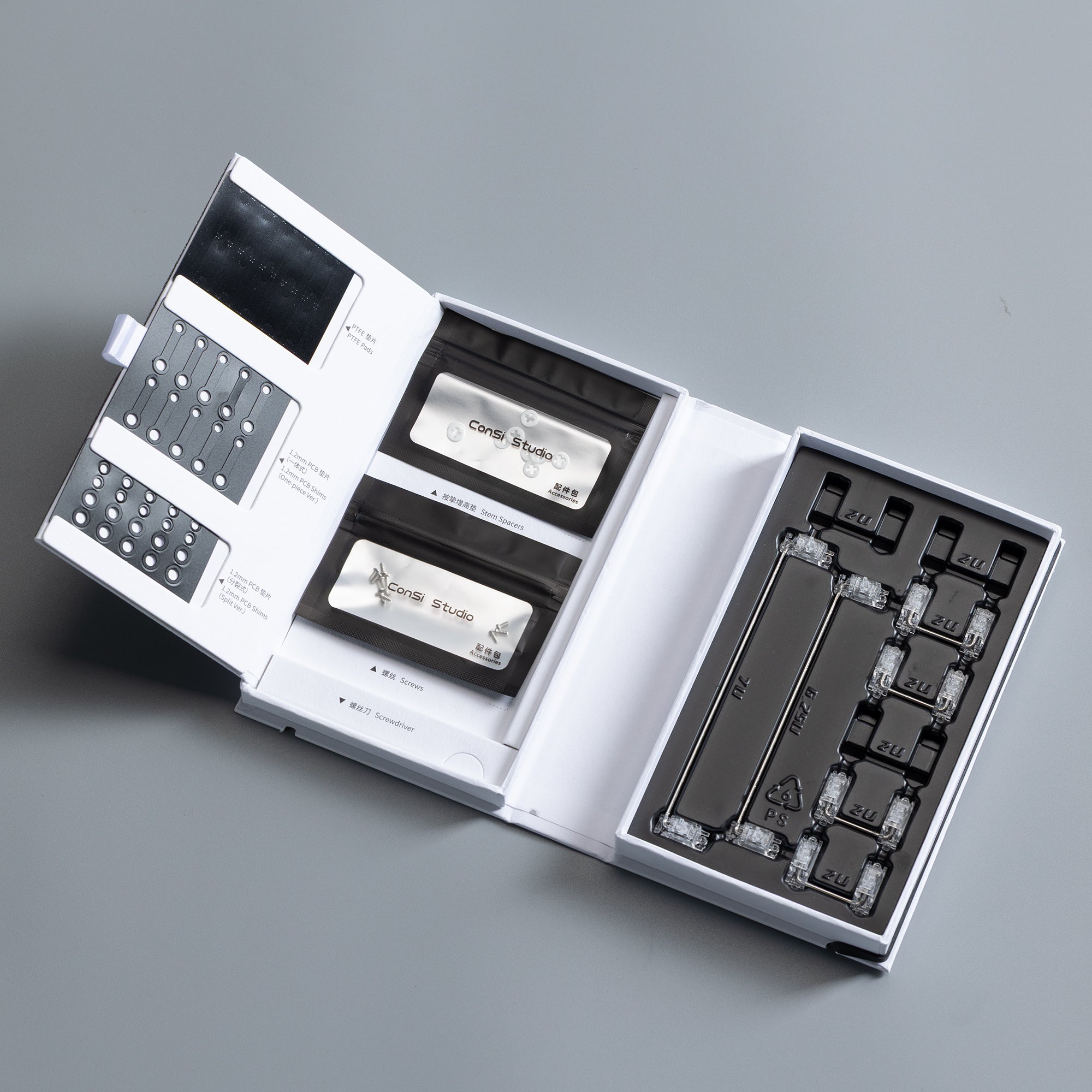

What's Included?

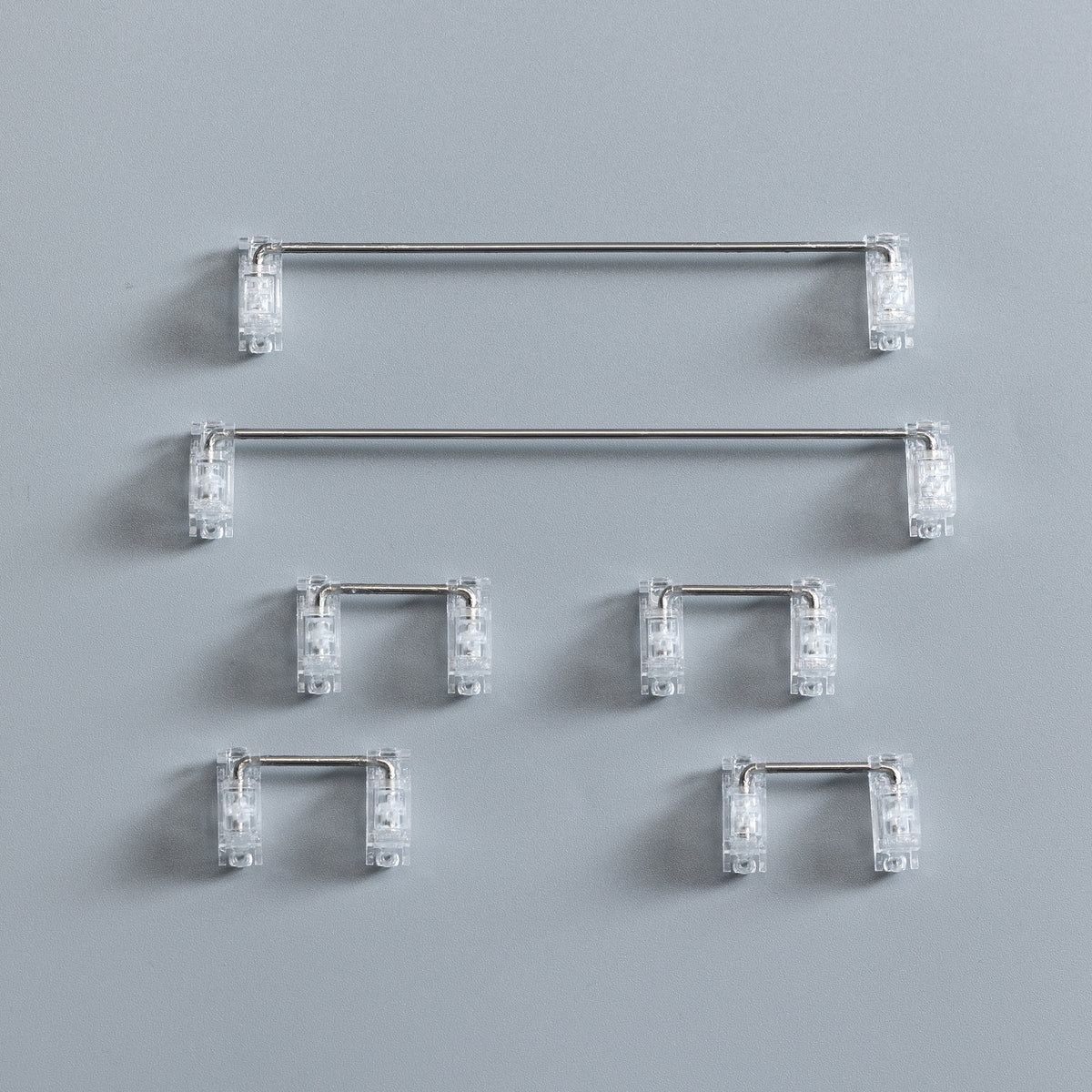

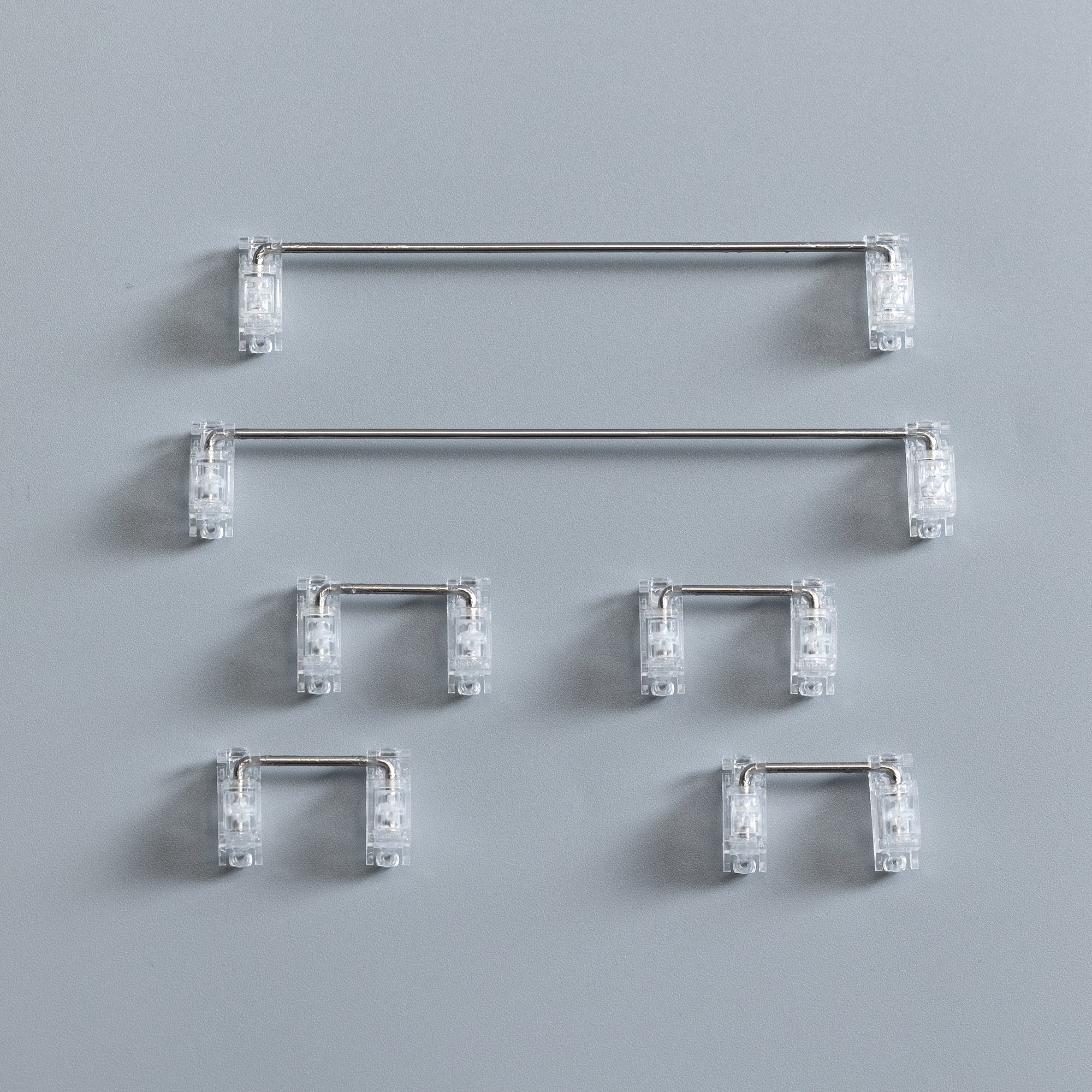

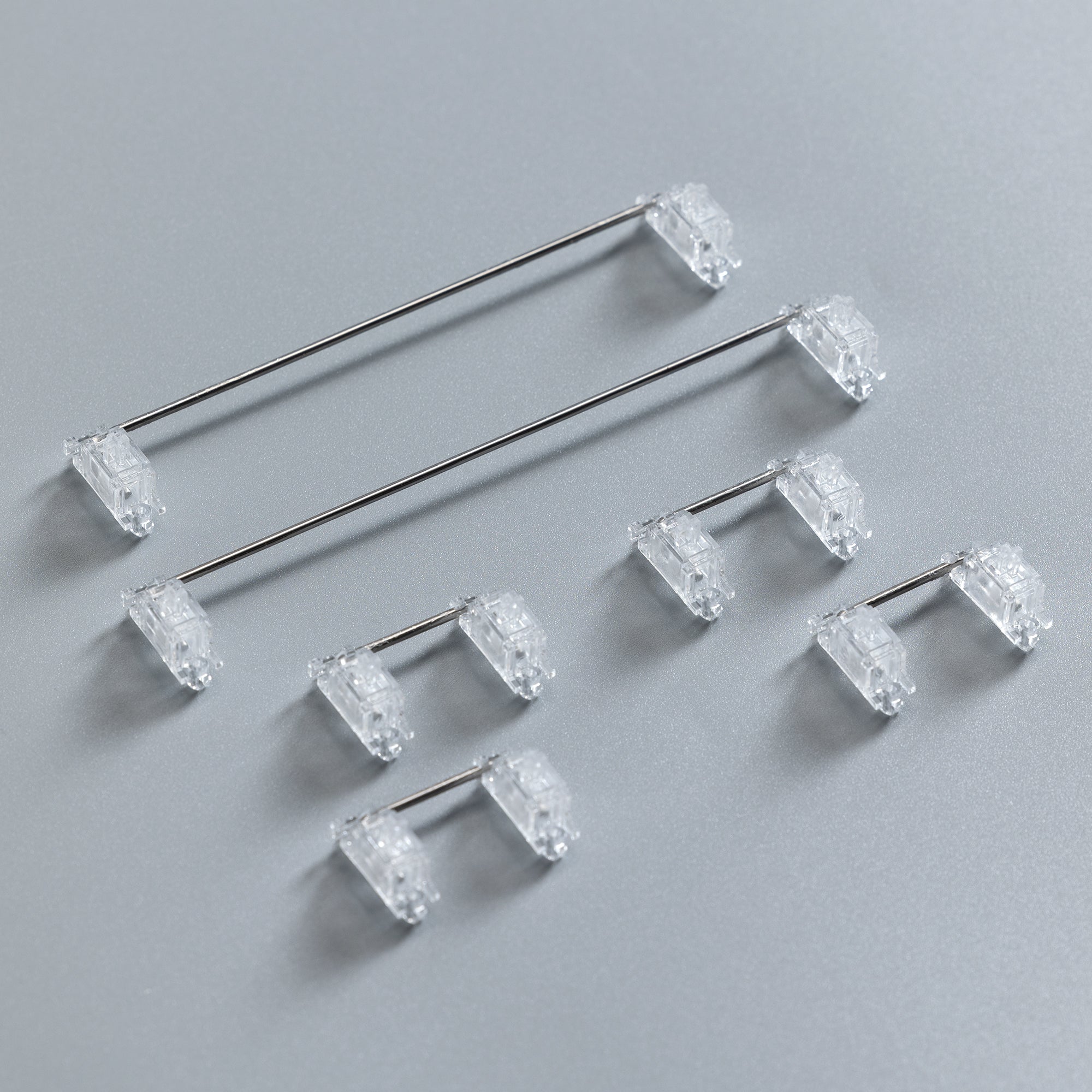

  • 4x 2u Wires
  • 1x 6.25u Wire
  • 1x 7u Wire

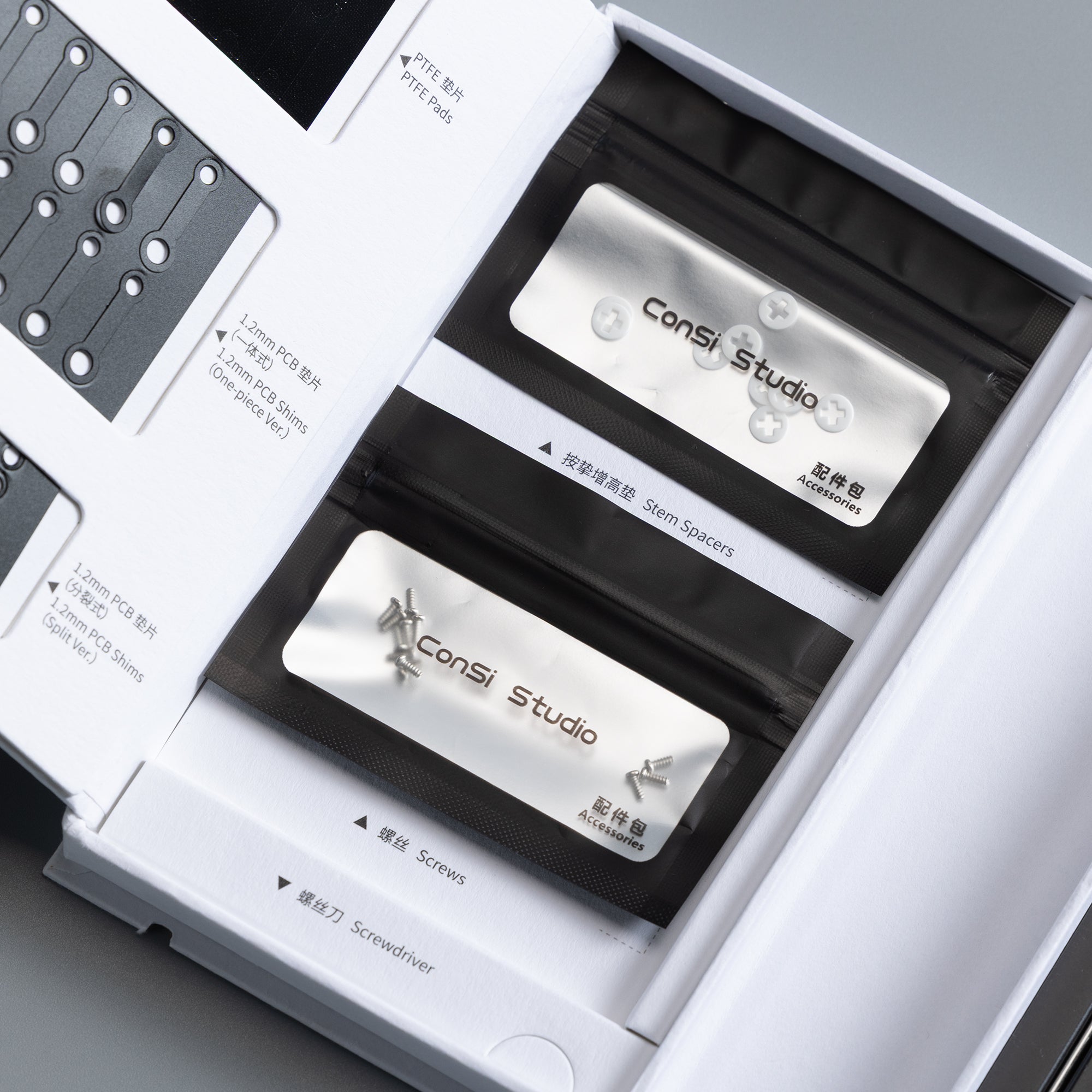

  • PTFE Stabilizer Pads
  • 1.2mm PCB Shims
  • Stabilizer Stem Spacers
  • Screws
  • Installation Screwdriver

Usual manual
