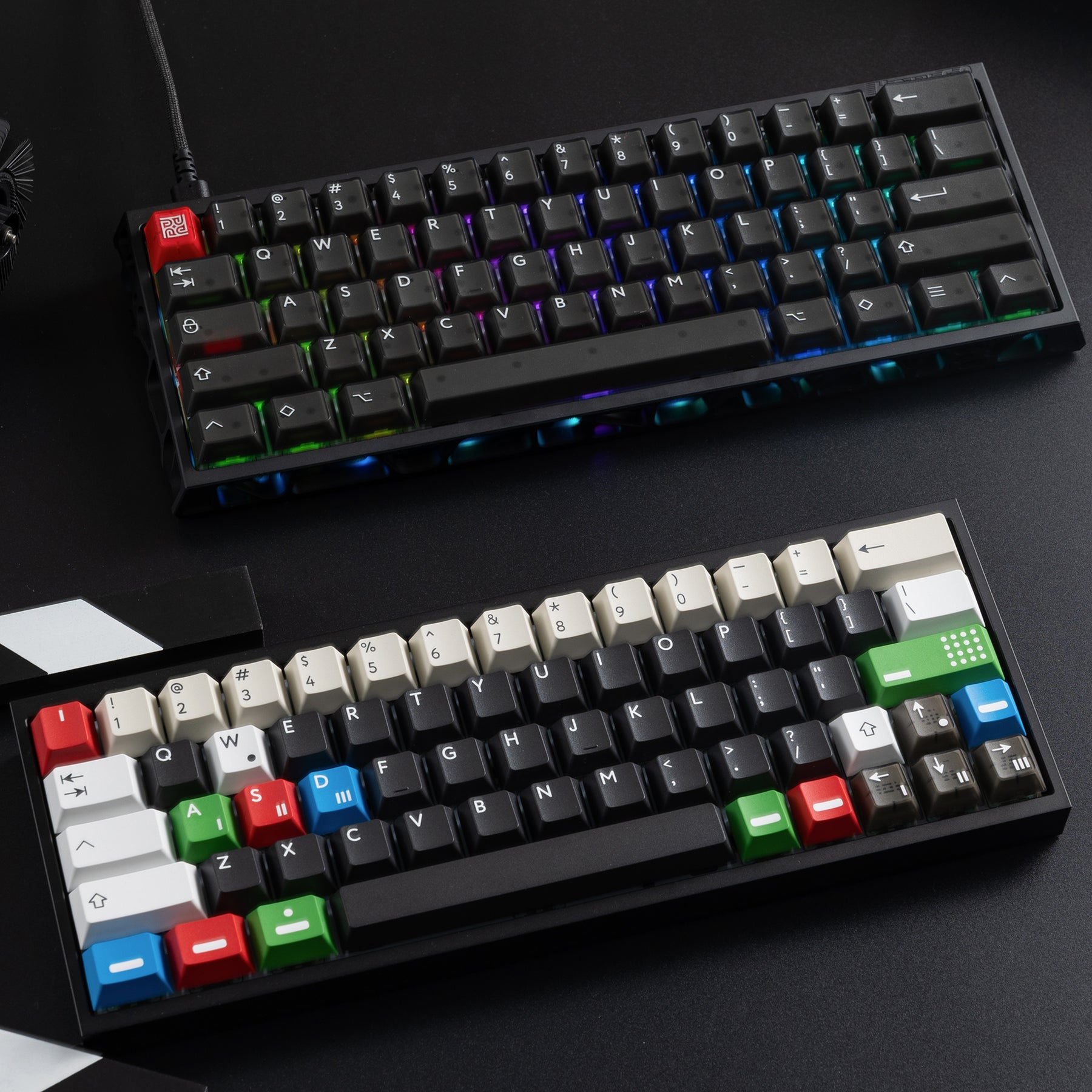

KBDfans x MM Gaming Keyboard
  • Pre-assembled: Each unit is professionally pre-assembled before shipment.
  • Lubrication: The Typeplus x YIKB screw-in stabilizer are carefully lubricated for smooth key feedback, enhancing the typing experience.
  • Strong Compatibility: Supports various keyboard layouts and cases
  • High-Performance PCB: Significantly improves key response speed and accuracy, making each keystroke more comfortable.

Layout

60% layout，Saves desktop space while keeping directional keys. Lightweight and ideal for travel.

PCB 61

PCB 64

PCB Specifications

Customizable Keymap

total 4 layers available for users to customize key mappings

High Performance

32-bit high-performance MCU ensures a smoother gaming experience

Scanning Frequency

Regular mode is 12K, FPS mode is 20-30K on R2/R3 roll, the rest are 4K

Polling Rate

8K polling rate provides a more stable gaming competitive state

Response Time

it’s 0.1ms in Beast Mode, while in Eye Mode, it‘s 0.35ms

RT accuracy

Beast Mode bottom out ±0.01mm, Eye Mode bottom out ±0.002mm

RGB LED

it comes with customizable per-key RGB on the top and RGB underglow

More Features

multi-trigger, rapid trigger, macro, on-board memory, etc

M6Lite+PCB driver: Click here to download
*Friendly reminder: This keyboard is compatible with Mac, but the firmware does not support it directly. You can set it up on a PC first and then use it with your Mac.

Gateron Magnetic Jade Gaming Switch

HiFi Sound Magnetic Wall Stem Switch-Magnetic Jade Gaming Switch

Initial Force: 36士5gf

Total Travel: 3.5±0.1mm

Pre Travel: Freely setting

Pre-Lubed: Yes

Typing Style: Linear

Initial magnetic flux: 120±8Gs(PCB1.2mm)

Bottom-out magnetic flux: 700±30Gs(PCB1.2mm)

Lifetime: Over 100 million times keystrokes

Cases options

It is compatible with various cases, providing flexible options to meet the needs of different users.

Other Accessories

PE Foam

Pre-modified Typeplus x YIKB screw-in stabilizer

Fr4 Plate

What's included?

Tofu redux case

  • Tofu redux case x1
  • Foam kit x1 set
  • M61 or M64 PCB x1
  • FR4 plate x1
  • Typeplus x YIKB screw-in stabilizer
  • Screws x1 set
  • PE foam x1
  • 8K USB cable
  • Gateron Magnetic Jade Gaming Switches x65 (Optional)

Holy60 case

  • Holy60 case x1
  • Foam kit x1 set
  • M61 or M64 PCB x1
  • FR4 plate x1
  • Typeplus x YIKB screw-in stabilizer
  • Screws x1 set
  • PE foam x1
  • USB cable x1
  • Gateron Magnetic Jade Gaming Switches x65 (Optional)
