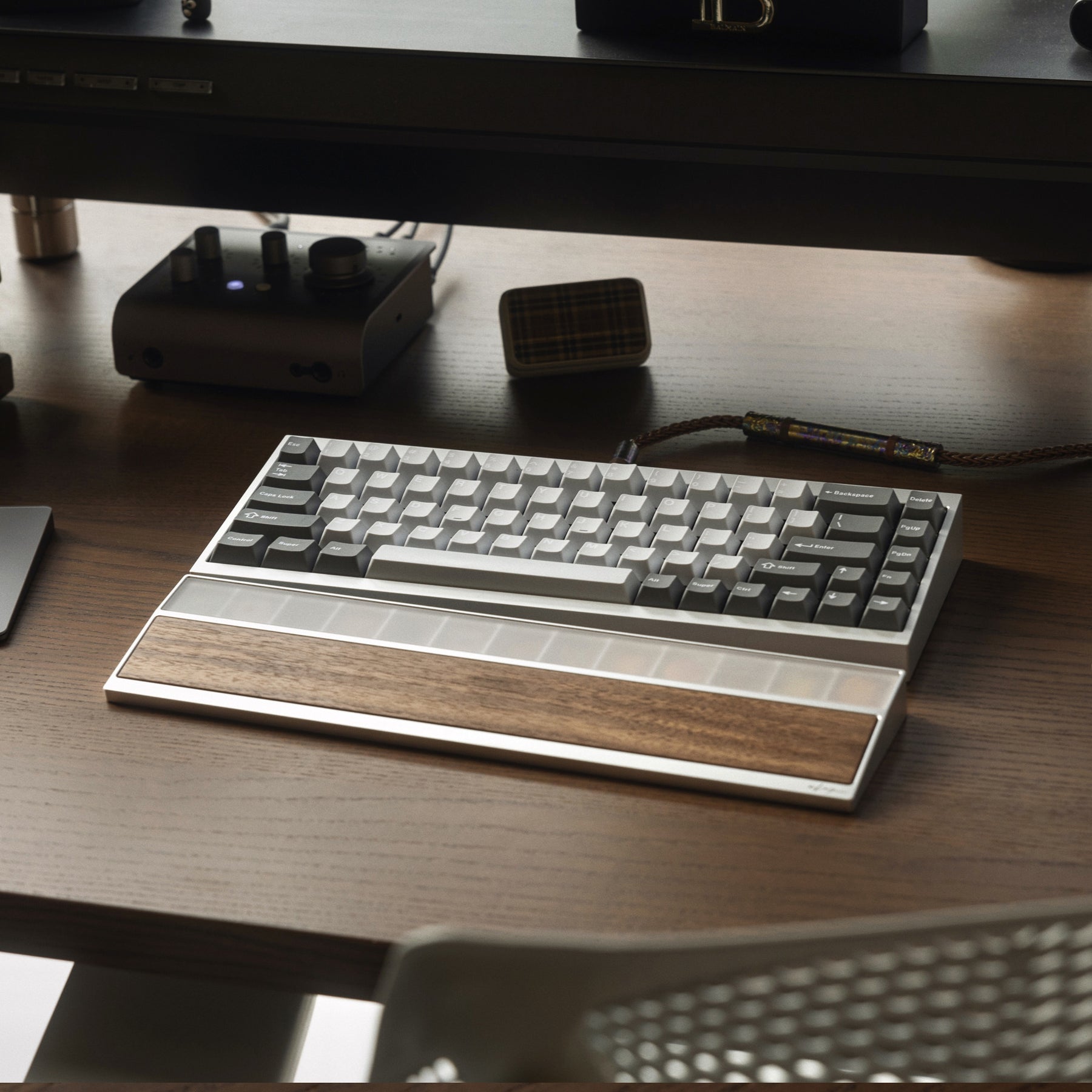

Tofu65 2.0
Tofu65 2.0
$73.00
Regular price
$133.00
SKU:
TFZH00697
Specifications
- Case material: Aluminum (anodized and electrostatically coated process)
- Plate: PC/ Aluminum/ FR4/ Carbon fiber plate
- PCB: 1.2 mm Flex cut Hot-swap PCB/1.2 mm Non-Flex cut Solder PCB, supports per-key RGB, QMK firmware, VIA support, USB-C port, with daughterboard+JST cable
- Weight bar: Brass material (transparent E-coating after sandblasting process)
- Structure: Top mount, silicone socks, silicone bowl, 3 types of structural support
- Weight: ≈1.7 kg after assembly
- Dimension: 313.7 mm (length) x 115.7 mm (width) x 18.5 mm (front) x 32.5 mm (back)
- Feature: The detachable silicon feet hiding all the screws at the bottom
- Typing angle: 7°
- Design by KBDfans
- Made in China
Include
Price $133 of the kit only includes below items:
- Aluminum top and bottom case x1
- Brass weight x1
- Plate x1
- Silicone bowl x1 set
- Silicone socks x1 set
- Foam kit (Case foam x1, PCB foam x1, EVA switch pad x1)
- Cable x1
- Cherry screw-in stabilizers x1 set
- Screws and rubber feet x1 set
The PCB should be purchased separately and added to the cart with the kit together
-
1.2 mm Flex cut Hot-swap PCB x1 (+ $55.00 USD) or
1.2 mm Non-Flex cut Solder PCB x1 (+ $50.00 USD)
Dimension
Firmware
- Flash Manual
- dztech_tofu_jr_v1_via.uf2
- tofu_jr.json
- The firmware of Tofu65 2.0 is the same as Tofu Jr.
Update
- Tofu65 2.0 PCB will restock around end of March (2024-3-1)
- The pre-order will ship around Feb 4th due to the PCB delay (2024-01-22)
- The pre-order colors will ship around Jan 25th(2024-01-12)
- The pre-order colors will ship in 1-2 weeks (2023-11-29)
- The pre-order colors will ship around the end of June (2023-06-08)
Layout
Solder version and hot-swap version kits have same layout
Building tutorial
Disclaimer
About the case:
1. Keyboard case - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.
2. Brass weight - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.
3. Case interior - Based on the production method of anodizing and spraying, the product can lead to some smearing at the surface level, and you'll see some hook marks within the case. Also, the spraying process can not guarantee that the color will look 100% the same on the internal case corners. The color off on the interior case and the interior corners are not eligible for Return & Refund.
4. About the potential coating defects: Because the Faraday cage exists for this type of production method, it's going to be hard to coat the Interior corners perfectly. Insead of kill all the smoothness on the case coating, the interior painting job won't be as perfect as the exterior's.
Attention:
-Make sure to QC your keyboard case and weight before building it. For any issues besides the three above, please get in touch with our customer support agents to get help.
-For anything built is not eligible for Return & Refund.
Specifications
- Case material: Aluminum (anodized and electrostatically coated process)
- Plate: PC/ Aluminum/ FR4/ Carbon fiber plate
- PCB: 1.2 mm Flex cut Hot-swap PCB/1.2 mm Non-Flex cut Solder PCB, supports per-key RGB, QMK firmware, VIA support, USB-C port, with daughterboard+JST cable
- Weight bar: Brass material (transparent E-coating after sandblasting process)
- Structure: Top mount, silicone socks, silicone bowl, 3 types of structural support
- Weight: ≈1.7 kg after assembly
- Dimension: 313.7 mm (length) x 115.7 mm (width) x 18.5 mm (front) x 32.5 mm (back)
- Feature: The detachable silicon feet hiding all the screws at the bottom
- Typing angle: 7°
- Design by KBDfans
- Made in China
Include
Price $133 of the kit only includes below items:
- Aluminum top and bottom case x1
- Brass weight x1
- Plate x1
- Silicone bowl x1 set
- Silicone socks x1 set
- Foam kit (Case foam x1, PCB foam x1, EVA switch pad x1)
- Cable x1
- Cherry screw-in stabilizers x1 set
- Screws and rubber feet x1 set
The PCB should be purchased separately and added to the cart with the kit together
-
1.2 mm Flex cut Hot-swap PCB x1 (+ $55.00 USD) or
1.2 mm Non-Flex cut Solder PCB x1 (+ $50.00 USD)
Update
- The pre-order colors will ship in 1-2 weeks (2023-11-29)
- The pre-order colors will ship around the end of June (2023-06-08)
Dimension
Firmware
- Flash Manual
- dztech_tofu_jr_v1_via.uf2
- tofu_jr.json
- The firmware of Tofu65 2.0 is the same as Tofu Jr.
Layout
Solder version and hot-swap version kits have same layout
Building tutorial
Disclaimer
About the case:
1. Keyboard case - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.
2. Brass weight - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.
3. Case interior - Based on the production method of anodizing and spraying, the product can lead to some smearing at the surface level, and you'll see some hook marks within the case. Also, the spraying process can not guarantee that the color will look 100% the same on the internal case corners. The color off on the interior case and the interior corners are not eligible for Return & Refund.
4. About the potential coating defects: Because the Faraday cage exists for this type of production method, it's going to be hard to coat the Interior corners perfectly. Insead of kill all the smoothness on the case coating, the interior painting job won't be as perfect as the exterior's.
Attention:
-Make sure to QC your keyboard case and weight before building it. For any issues besides the three above, please get in touch with our customer support agents to get help.
-For anything built is not eligible for Return & Refund.
Videos
Videos
Videos
Features
Features
65% Layout
7 ° typing Angle
Hot-swap & programmable & RGB
3 kinds of structural system support
Features
65% Layout
7 ° typing Angle
Hot-swap & programmable & RGB
3 kinds of structural system support
Multiple colors are available
Electrostatic coating and anodizing
Red
White
Black
Cement gray
Cute
Forest
Azure
Linen gray
Lavender
Gray
Multiple materials can be selected
1. FR4
2. Carbon fiber
3. Polycarbonate
4. Aluminum
Hot-swap & QMK open source firmware
Per-key RGB on the top
1.2 mm thickness flex cut PCB
Supports daughter board
Open source QMK firmware that supports VIA online configurator
New design with 3 different mounting styles
Tofu65 2.0 continues the design of the first generation. KBDfans does upgrade the structure this time.
The 2.0 version supports three different mounting styles: Top Mount, Gasket Mount, Silicone bowl Gasket mount（Available in 3 different hardness silicone bowls）, which meant to provide three different typing experiences on one keyboard.
Top mount
Silicone bowl gasket
Silicone socks gasket
Explosion Diagram
Multiple colors are available
Electrostatic coating and anodizing
Red
White
Forest
Black
Cement gray
Cute
Azure
Linen gray
Lavender
Gray
Multiple materials can be selected
1. FR4
2. Carbon fiber
3. Polycarbonate
4. Aluminum
Hot-swap & QMK open source firmware
Per-key RGB on the top
1.2 mm thickness flex cut PCB
Supports daughter board
Open source QMK firmware that supports VIA online configurator
New design with 3 different mounting styles
Tofu65 2.0 continues the design of the first generation. KBDfans does upgrade the structure this time.
The 2.0 version supports three different mounting styles: Top Mount, Gasket Mount, Silicone bowl Gasket mount（Available in 3 different hardness silicone bowls）, which meant to provide three different typing experiences on one keyboard.
