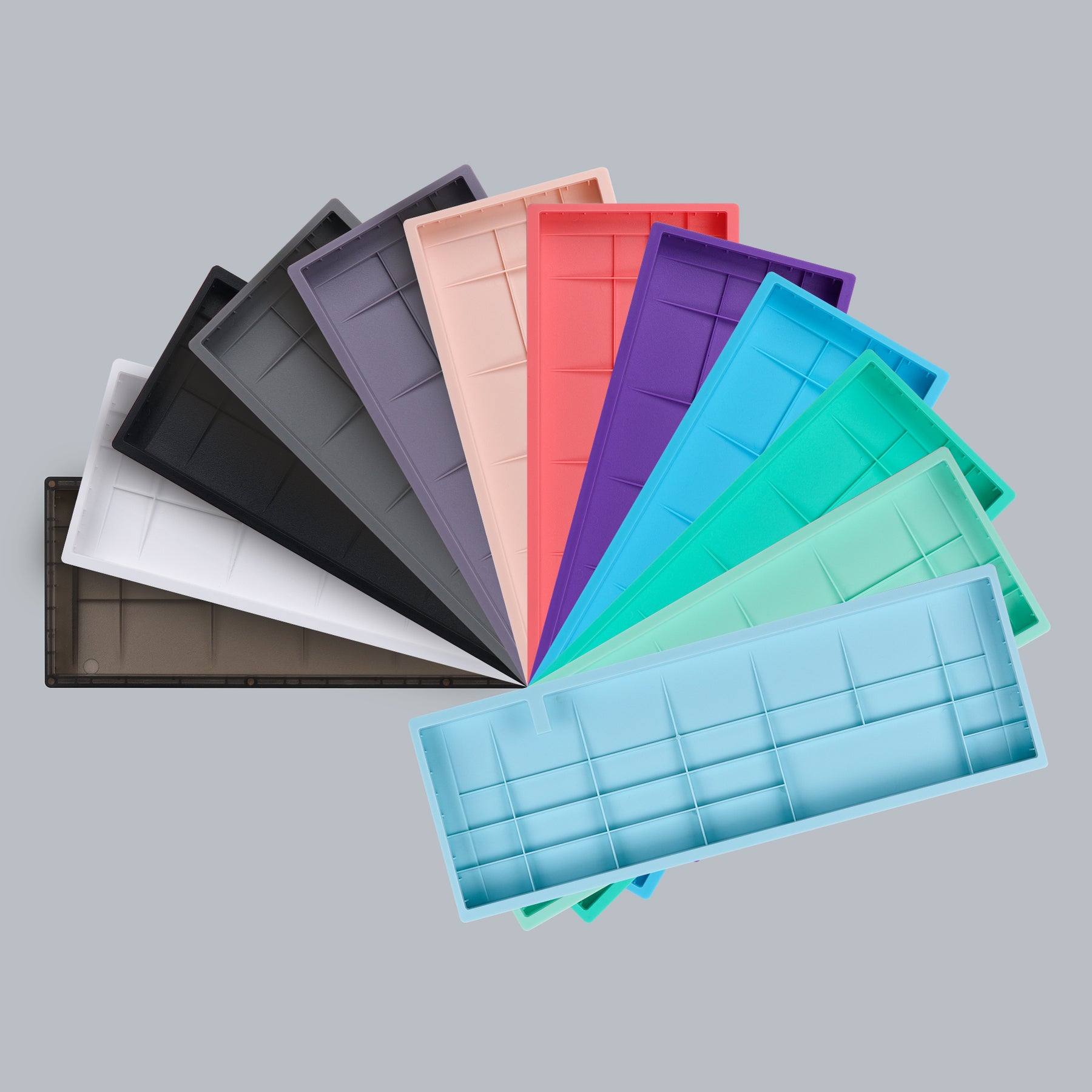

KBD67 Lite R4 Mechanical Keyboard Kit

$109.00
Color
PCB Version

There are 1151 people on the waiting list, click the button below to join! We will notify you by email when the product available

Notify me

Congratulations! You are now on the waiting list, please check your inbox for our confirmation email!


Register Account

Sign In

SKU: DP4993

Optional Compatible Case/Keycaps

KBD67 Lite R4 Progress

  • Selling extras in stock (2022-08-22)
  • Arranging the shipment from July 30th to mid-August. (2022-07-29)
  • The accessories are arriving, ready to be assembled then arrange the shipment according to the colors that have arrived. (2022-07-12)
  • We have tried flex cut PCB for KBD67lite R4 during the designing phase. However, after some comparative tests, both sound and typing experience are not better than the original PCBs. As a result, we only changed the colorway for KBD67lite Round 4. (2022-03-29)
  • Group Buy Date: May 6th to May 30th, 2022
  • Estimated Shipping Date: End of July 2022

Optional Compatible Accessories

  • KBD67 Lite R4 ABS Plastic Case: Click
  • KBD67 V3 Aluminum Case: Click
  • Collection Keycaps for KBD67 Lite ANSI: Click

Assembly Service

  • Hot-swap Assembly Service: Click
  • Krytox Switch Lube Service: Click

Include

  • PCB x1

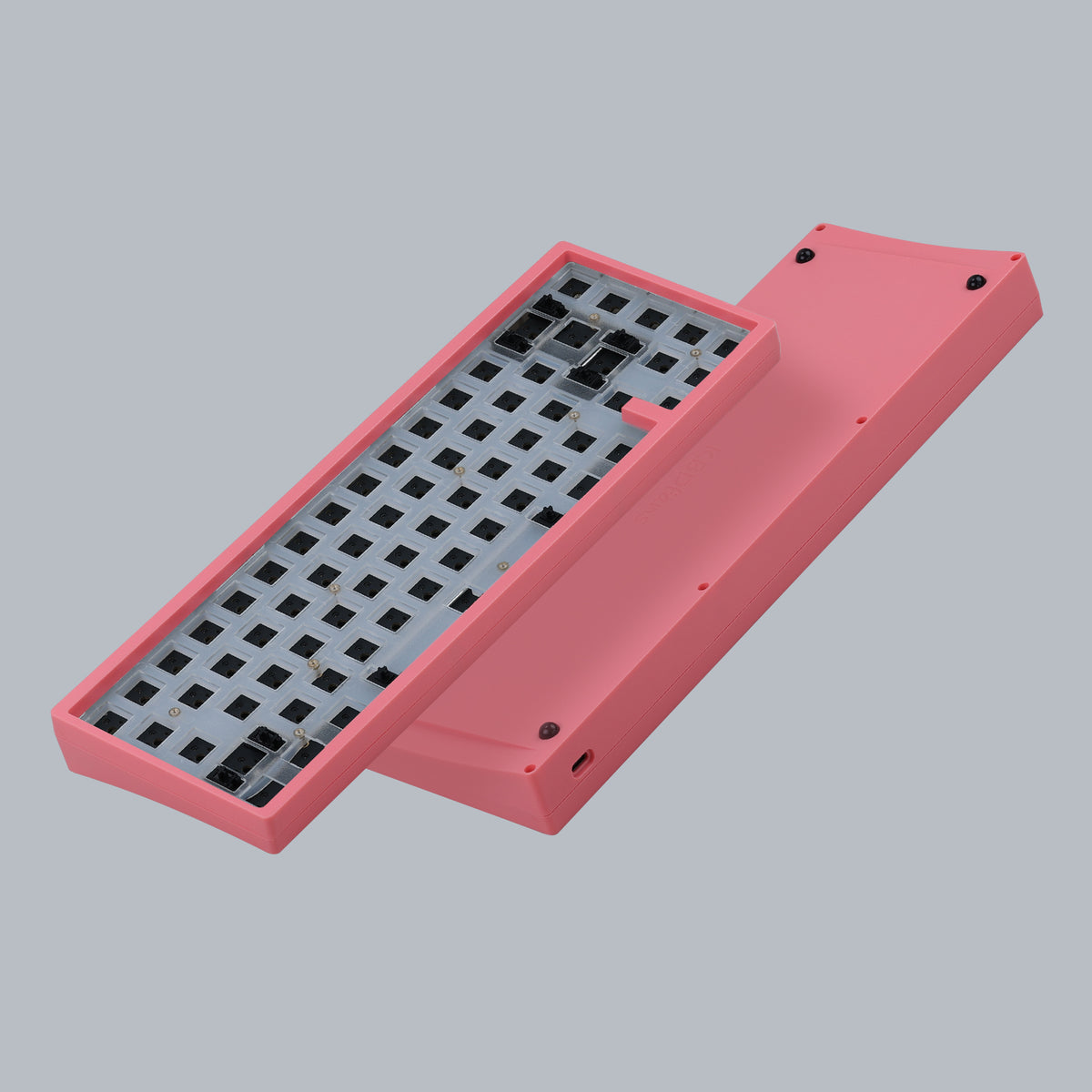

  • Case x1
  • Plate x1
  • Stabilizers 60 set x1
  • Mute silicone x1
  • Bottom foam x1
  • USB-C cable x1
  • KBD67 Lite Carrying case x1
  • KBDfans stabilizers foam stickers set x1
  • Rubber feet and Screws

SPECS

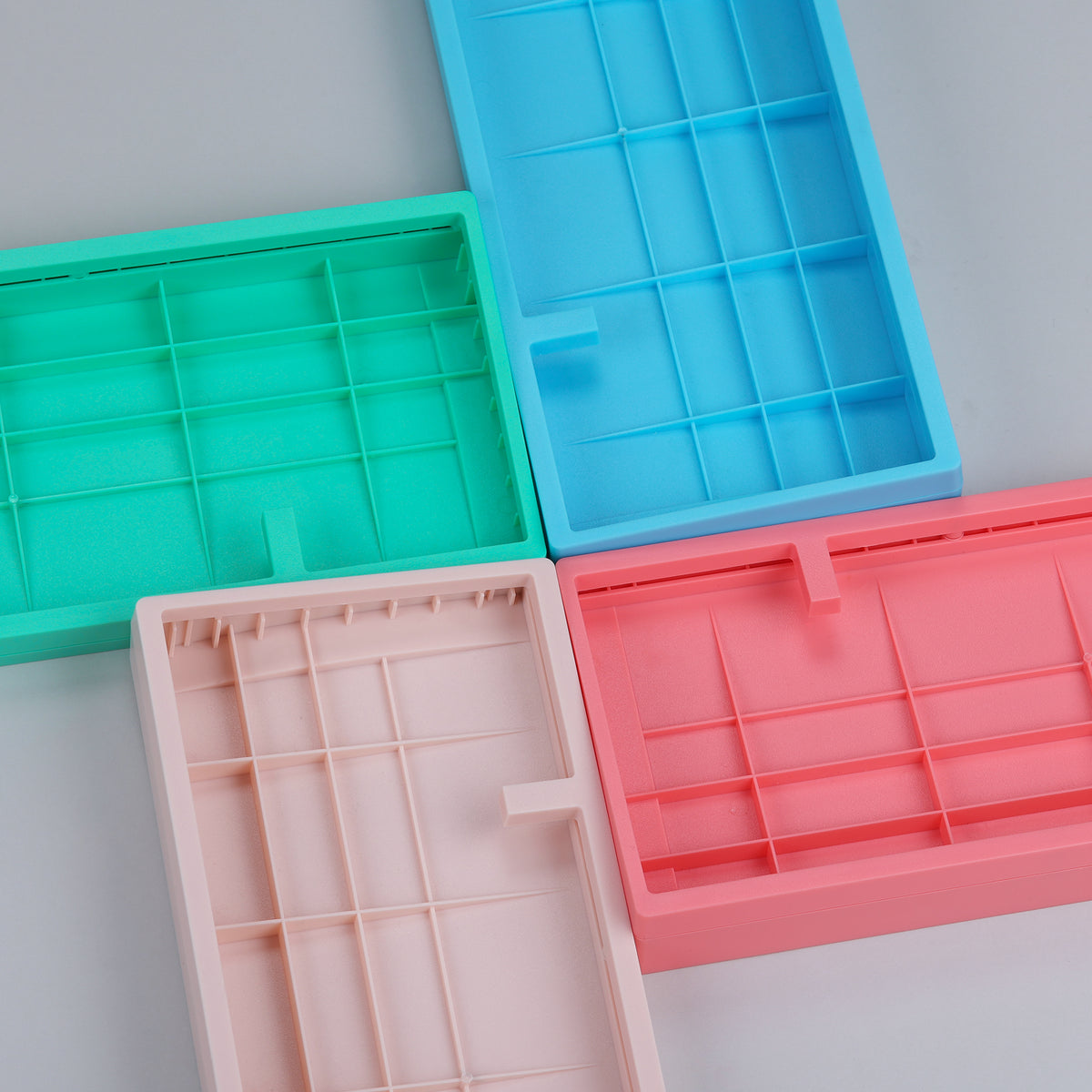

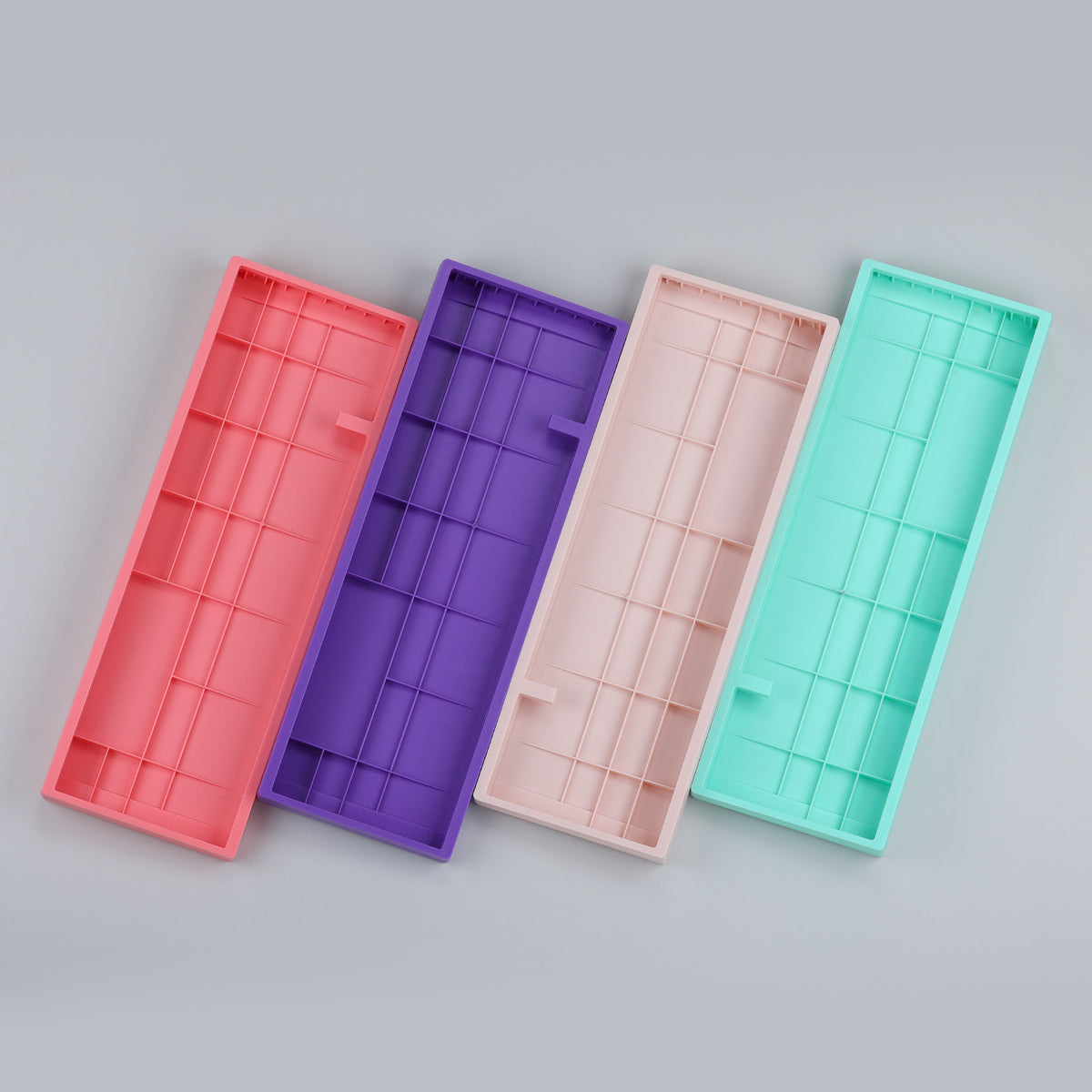

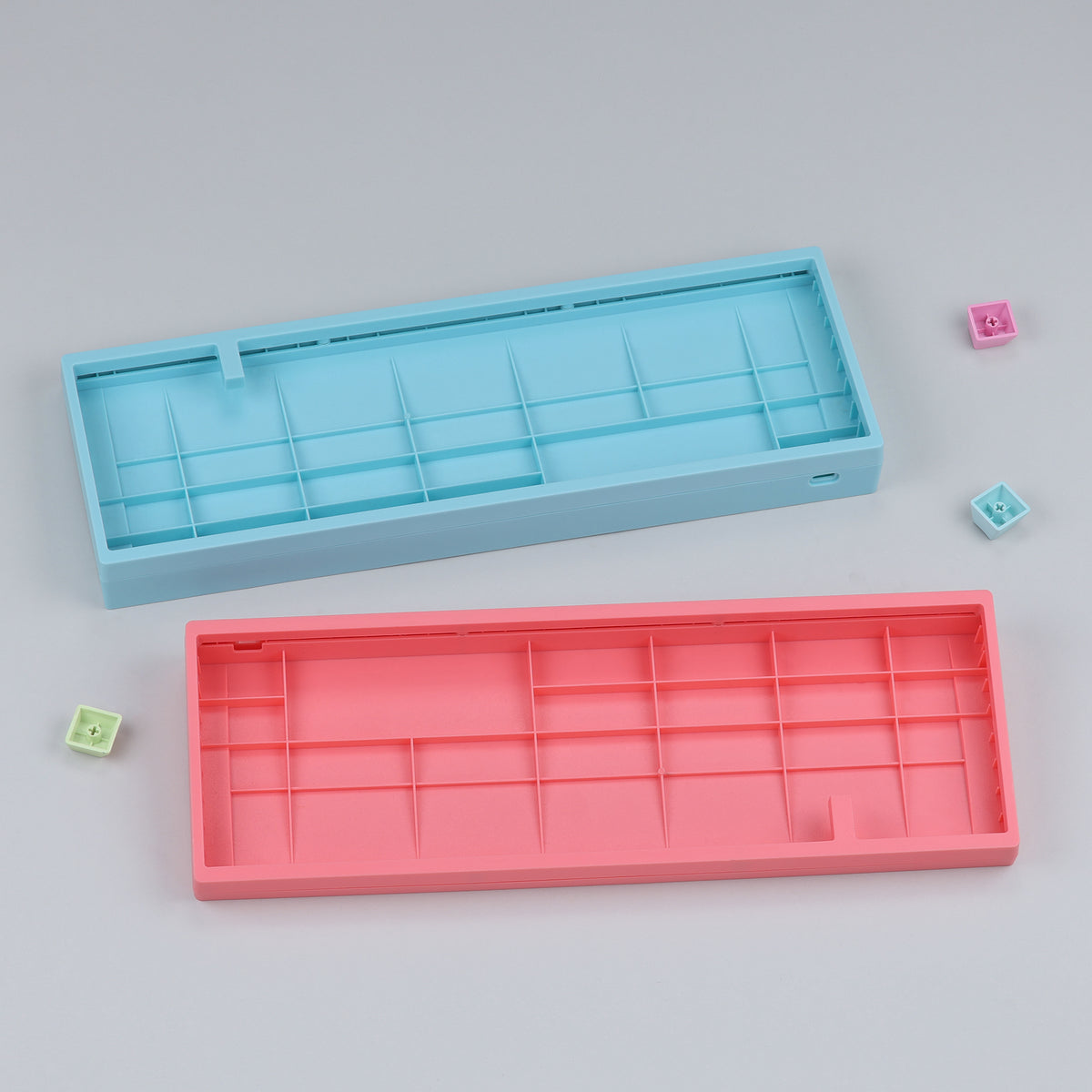

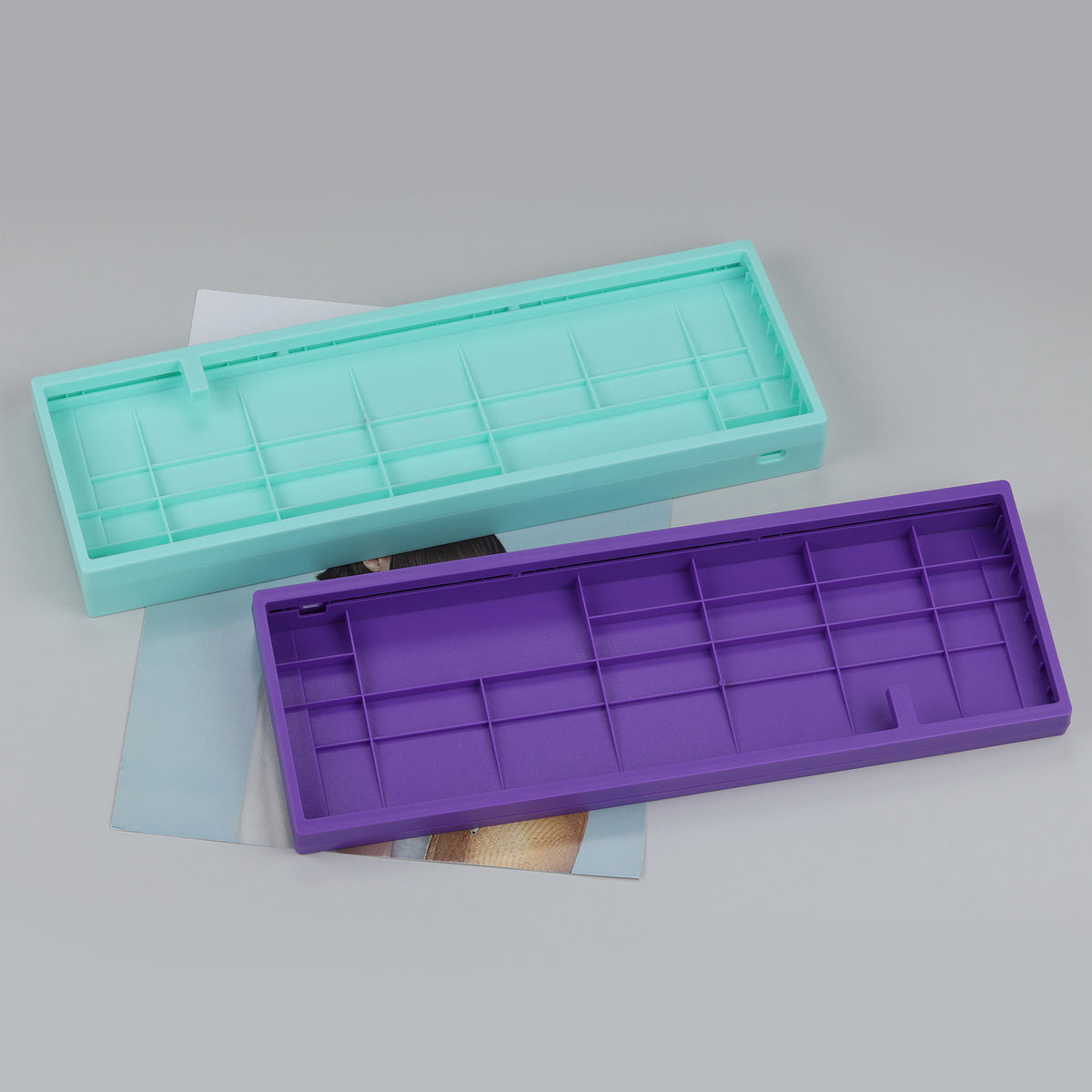

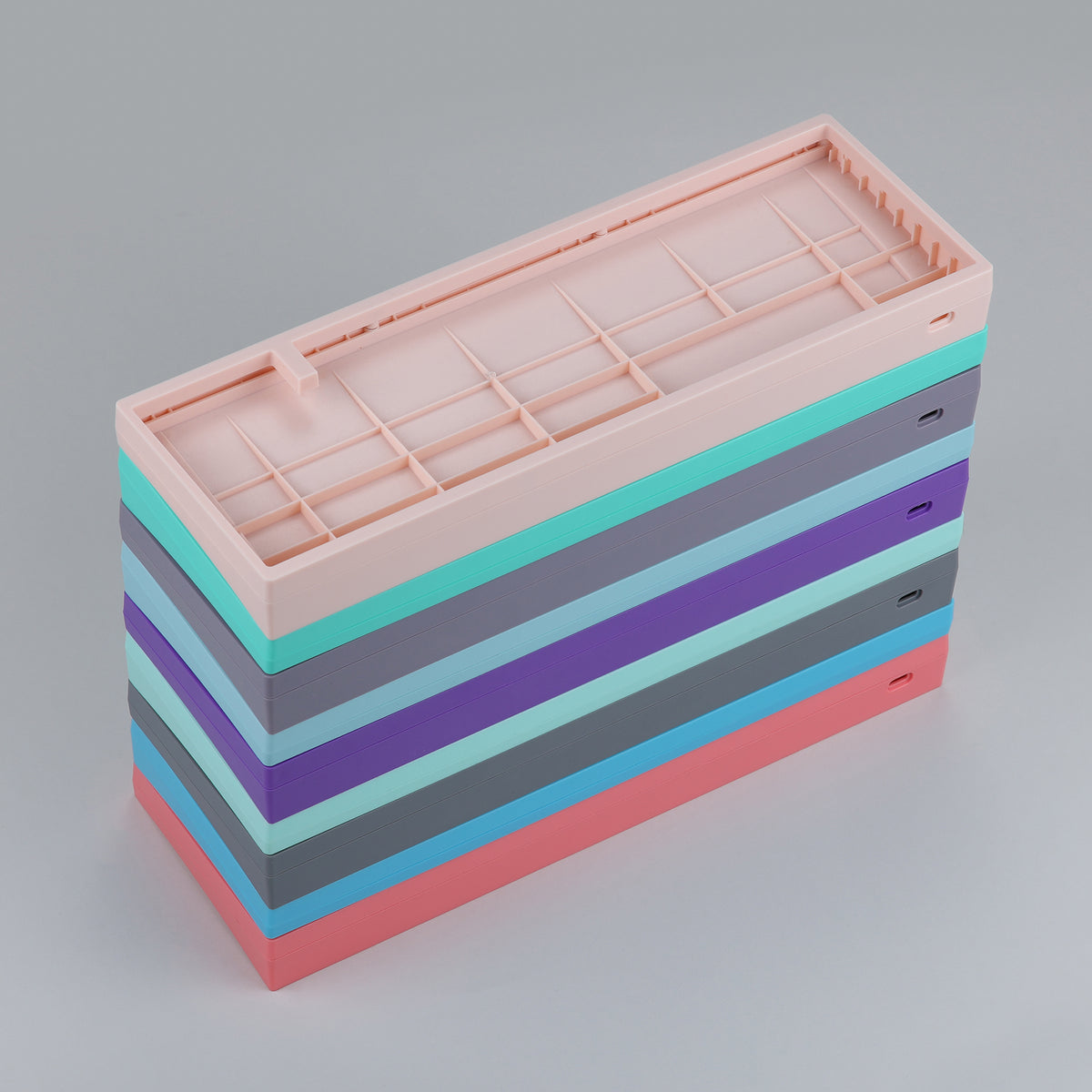

  • Top and Bottom ABS plastic case
  • Mute silicone
  • Cherry screw-in stabilizers 60 set
  • Wired version supports VIA;
  • Bluetooth version supports TMK firmware, it already supports the VIA tool. Before using VIA, you need to replace the old file with a new bin file and load the Json file from VIA.YD67BLE.BIN   YD67BLE_json_via.json
  • Wired version supports Per-key RGB and Hot-swap; Bluetooth version does not support RGB effects
  • Injection molding polycarbonate plate (No necessary to add stand-offs)
  • USB-C supports MAC, Windows, Linux, etc.
  • Compatible with MX and MX clone switches
  • KBD67 Lite Acceptable Quality Standards: Click  QC standard
  • Made in China
  • Typing angle: 6 degree
  • Designed by KBDfans

Wired PCB Specs

Wired PCB Specs

  • KBD67 MarK II Hot-swap PCB/ KBD67 MarK II RGB-ISO PCB
  • Fixed layout
  • Support Per-key RGB
  • Based on QMK
  • Support VIA
  • Kailh hot-swap sockets

Wired PCB Flash Manual

Wireless PCB Specs

Battery Specification

  • NO BATTERY INCLUDED IN THE KIT, have to buy battery SEPARATELY
  • Recommended battery Link (Right click and open in a new tab)
  • Lithium polymer, 3.7V battery
  • The connector is PH2.0




Include

PCB x1
Case x1
Plate x1
Stabilizers 60 set x1
Mute silicone x1
Bottom foam x1
USB-C cable x1
KBD67 Lite Carrying case x1
KBDfans stabilizers foam stickers set x1
Rubber feet and Screws

Layout

Size and Typing angle
