Boop Redux

$239.00
Case (*keycaps not included)
SKU: DP6188

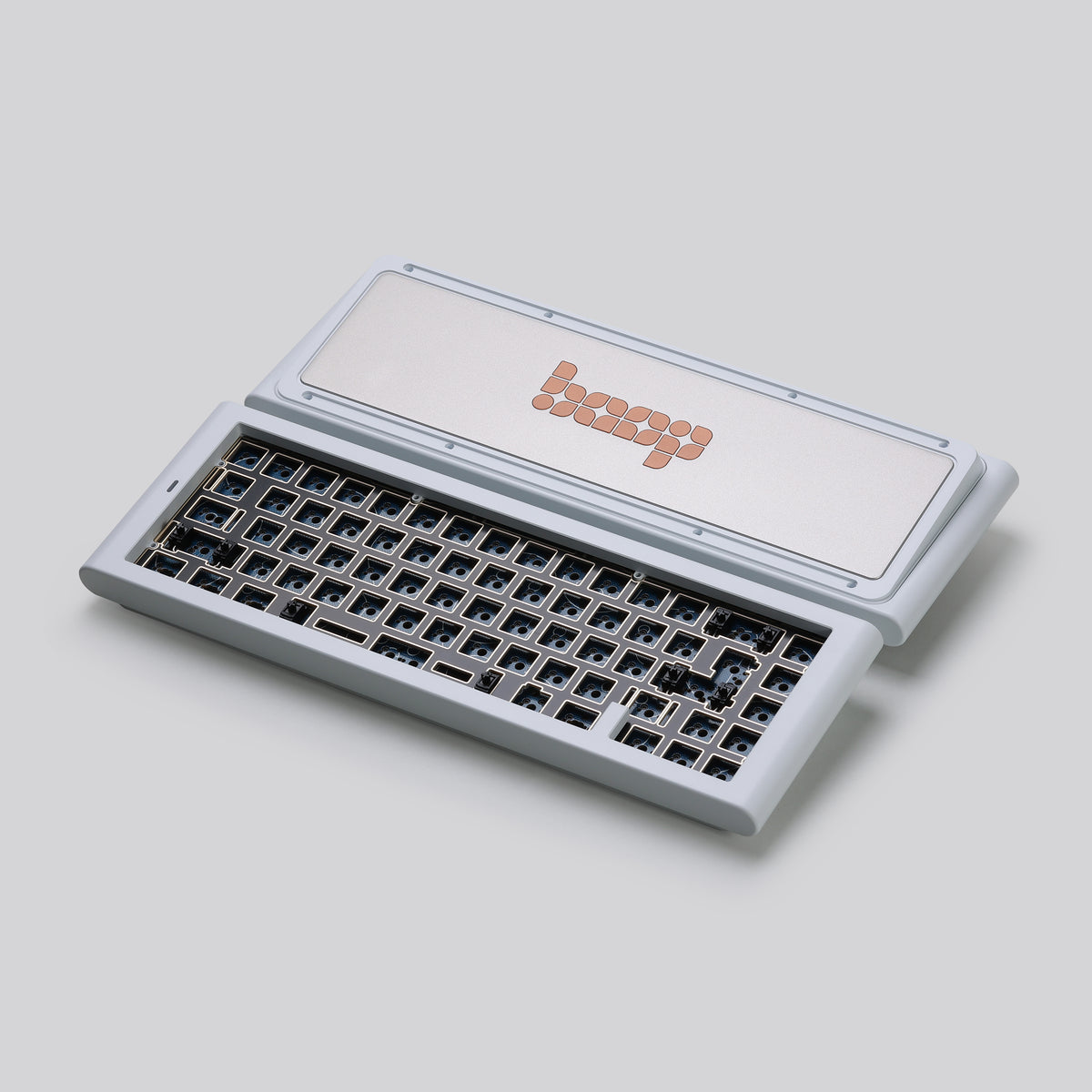

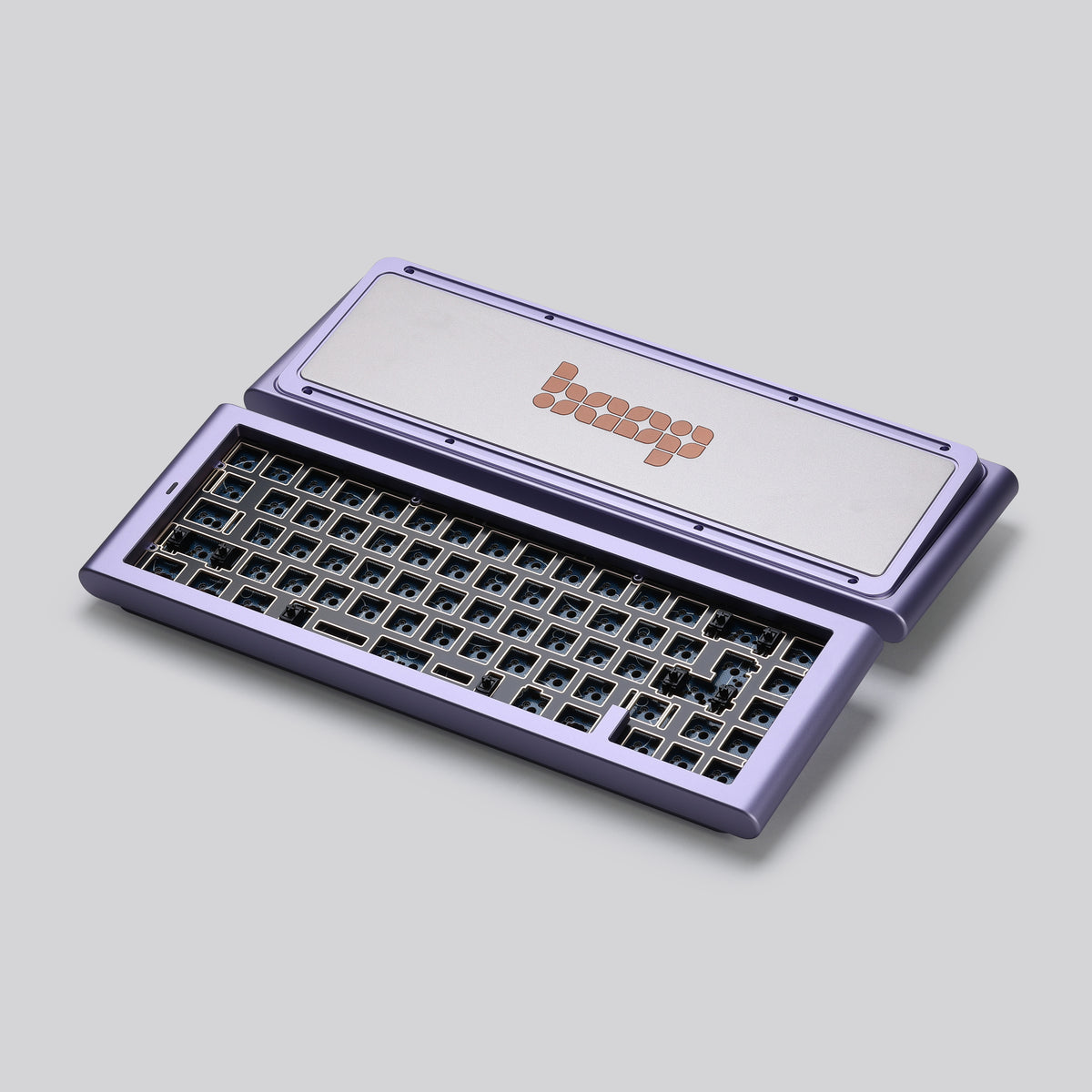

Boop Redux

Introducing boop65 redux, a refined version of its predecessor.
A timeless design with seamless and fully rounded edges, once again but with an even sleeker design,
improved compatibility and a new feature: the external LED indicator.

Specs

  • Case: Top and bottom aluminum case
  • Mount style: Silicone socks gasket / Top mount
  • Weight bar: Stainless steel weight bar + Copper logo badge (manufacturing process: Powder coating + transparent electrophoretic coating)
  • PCB: 1.6mm Hot-swap wired PCB, with a Caps lock LED indicator, support VIA/QMK, USB-C interface
  • Plate: Aluminum Black/FR4/Polycarbonate
  • Price: 239USD/254USD
  • Designer: biip
  • Weight: ~2.17kg after assemblyL

Update

  • In-stock sale: Around May 10th (2024-05-08)
  • Pre-order time: To be updated
  • Estimated shipping date: To be updated

Include

  • Case x1
  • PCB x1
  • Daughterboard+ JST cable x1
  • Weight bar x1
  • FR4 Plate x1
  • Aluminum Plate x1
  • Polycarbonate Plate x1
  • Foam kit x1 (Switch pad x1, PCB foam x1, Case foam x1)
  • Screwdriver (with 2 bits) x1
  • Silicone socks x1 set
  • Long strip rubber feet x1 set
  • Screws x1 set

Comparison

Version Boop v1 Boop Redux

Structure

Gasket mount

Silicone socks gasket / Top mount

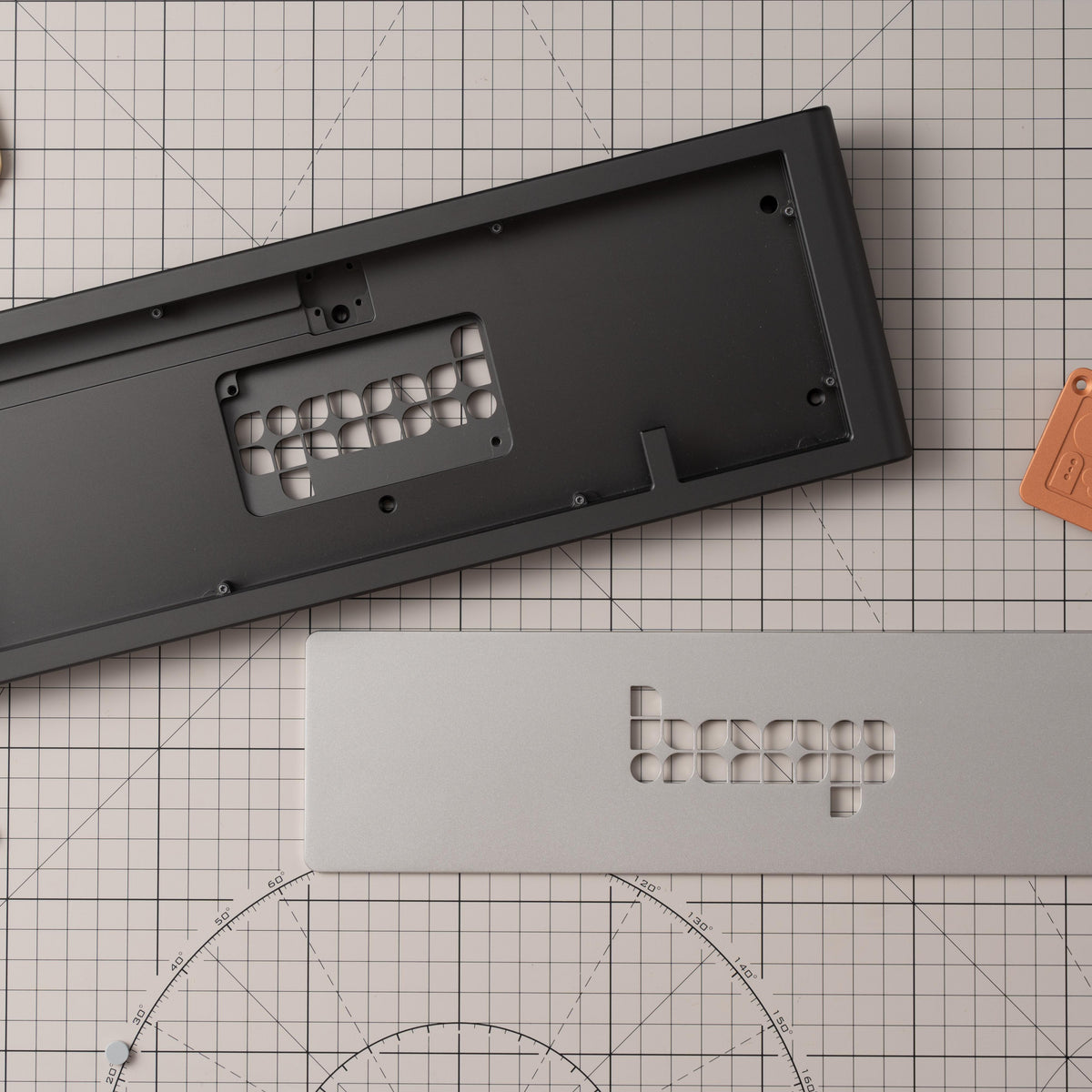

Case

Without Caps lock LED indicator hole; Gradient exterior

With Caps lock LED indicator hole; Minimalist design

PCB version

Hot-swap / Solder

Hot-swap (with daughterboard) only

Weight bar

Brass weight bar

Stainless steel weight bar + Copper brass logo badge

Plate

Aluminum White / Brass / FR4 / Polycarbonate

Aluminum Black / FR4 / Polycarbonate

Rubber feet

Adhesive rubber feet

Embeddable long strip rubber feet

E-white

Anodized Black

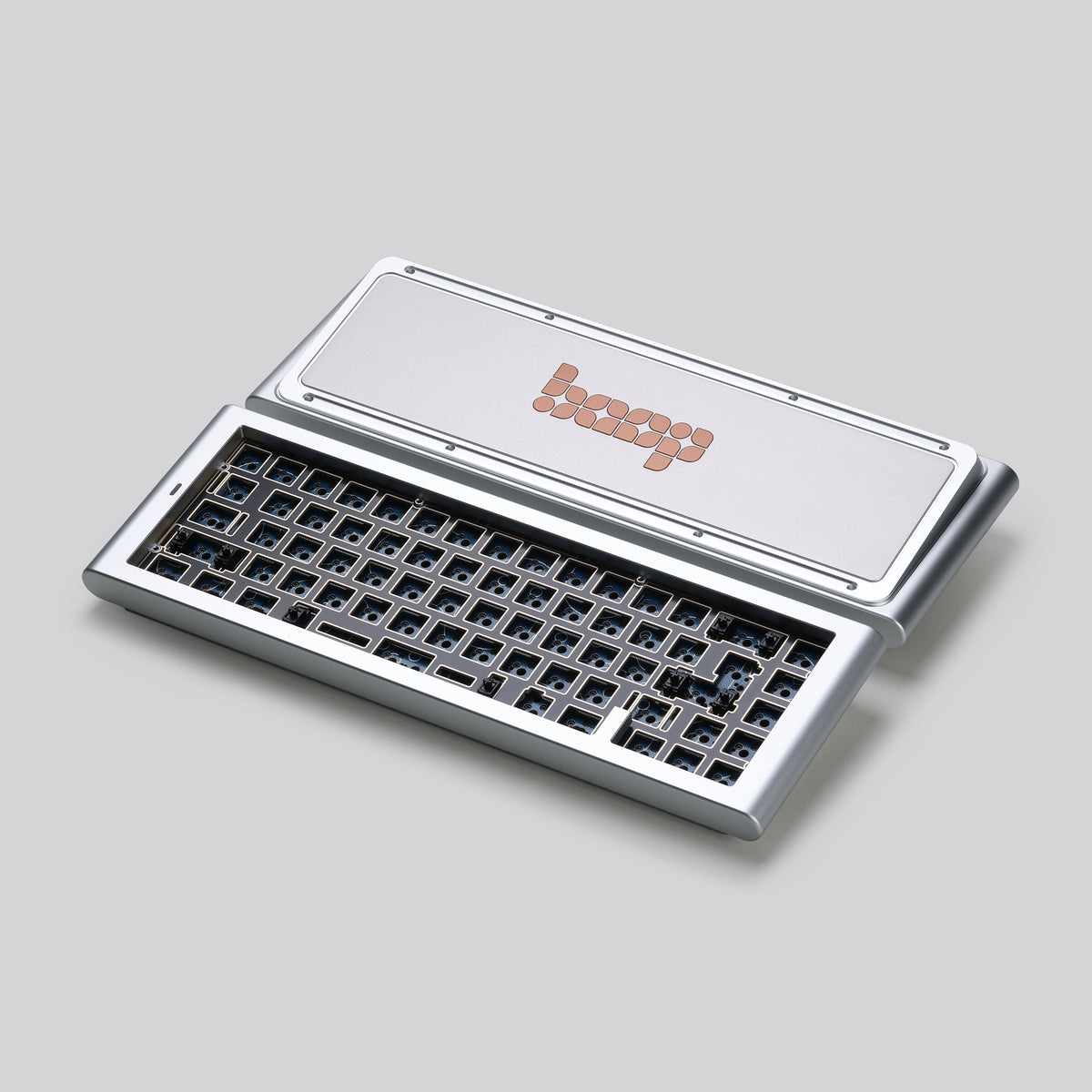

Anodized Silver

Anodized Gray

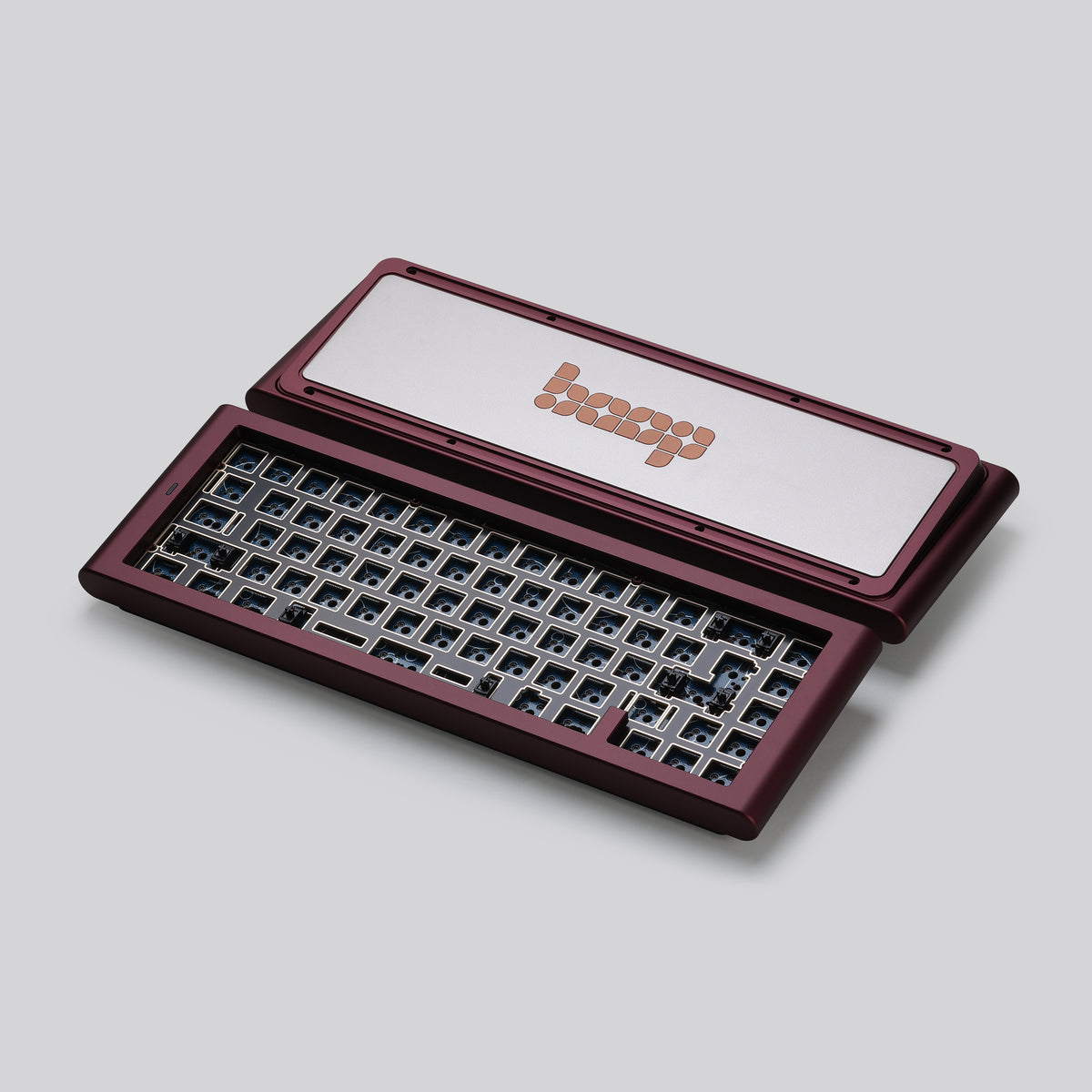

Anodized Burgundy

Anodized Pine Green

Anodized Light Purple

New Features

Outer side of the badge: Redesigned with a stylish aesthetic

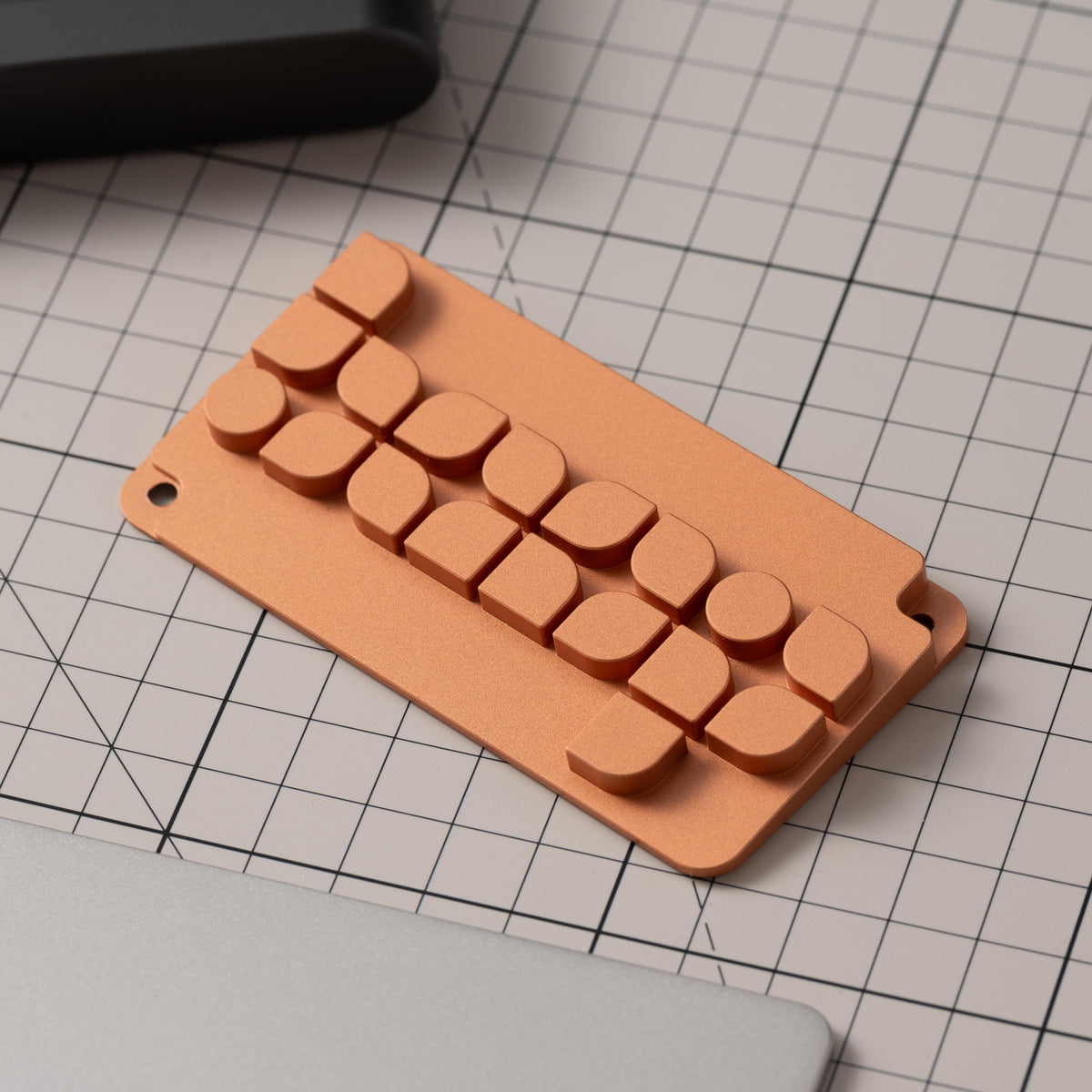

Inner side of the badge: Crafted from copper material for a more exquisite appearance.

Bottom case: The changes in appearance make it better align with the curved aesthetics of the top case, achieving a harmonious and unified overall visual effect.

Top case: The curvature on both sides of the shell has been optimized for a more natural transition with the front; practical LED indicators have been added while retaining a minimalist design.

Exploded view

Supported structures

Silicone socks gasket

Top mount

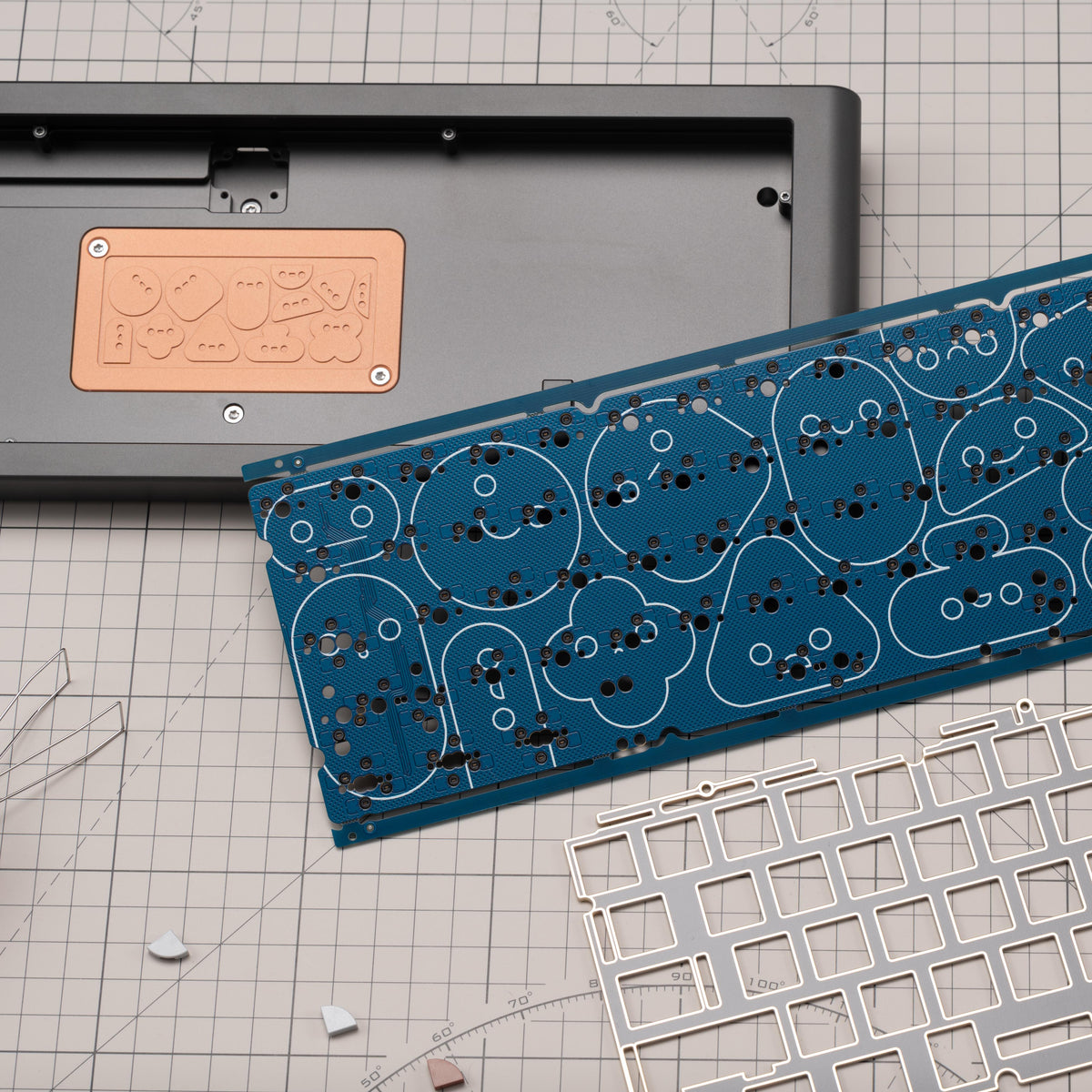

PCB

Hot-swap wired PCB, with a Caps lock LED indicator, support VIA/QMK, USB-C interface

The default firmware setting is that the lighting effect changes when you press the capslock key. If you turn off the RGB lighting, the LED will light up red when you press the capslock key.

The PCB has been upgraded to support a daughterboard, aiming to eliminate collisions between the USB port
and the case when using a gasket structure, providing better protection.

Additionally, customizations include a sapphire blue color and graffiti patterns.

Plate

Aluminum Black
Polycarbonate
FR4
Three plates are bundled in the kit, no need for additional selection.

Dimension

Layout

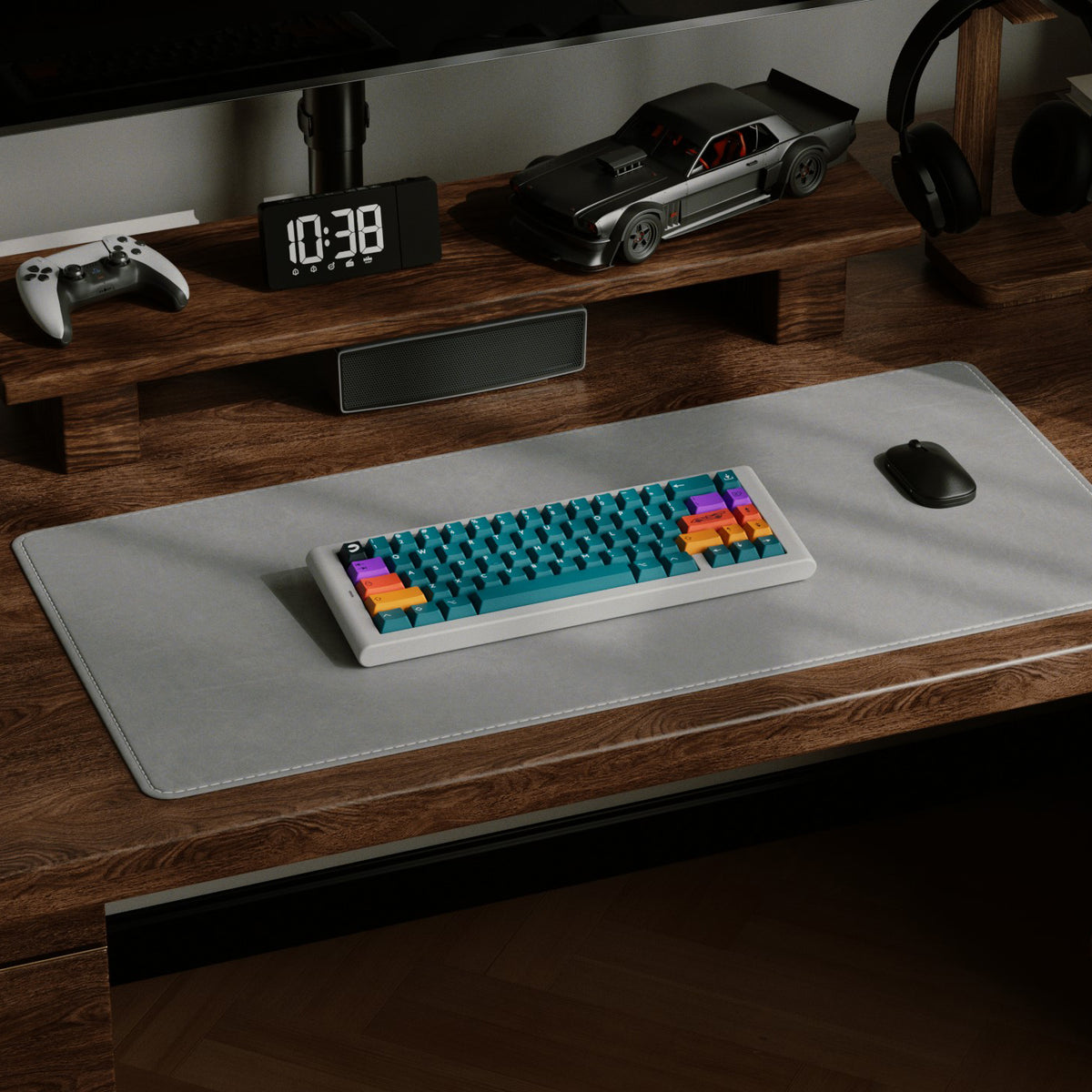

Renders
